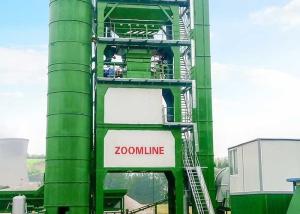

China 160t / h Stationary type Asphalt Batching Plant
Product Description
ZAP-M series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.
Main advantages:
• Cost effective solutions for your project
• Multi-fuel burner for choose
• Environmental protection, energy saving, safe and easy to operate
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers requirements
• Rational layout, simple foundation, easy to be installed and maintenance
Technical parameters of 40-320tph Stationary Asphalt Mixing Plant
| Items | ZAP-M40 | ZAP-M60 | ZAP-M80 | ZAP-M100 | ZAP-M120 | ZAM-S160 | ZAP-M200 | ZAP-M240 | ZAP-M320 |
| Plant Capacity | 40t/h | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h |
| Cold Aggregate Feeding System |
| Hopper capacity | 4 x 4.5m3 | 4 x 4.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 4 x 8m3 | 5 x 8m3 | 5 x 15m3 | 5 x 15m3 | 6 x 15m3 |
| Belt capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h | 220t/h | 280t/h | 360t/h |
| Drying System |
| Drying drum size(mm) | 1200x5200 | 1200x5500 | 1500x6600 | 1500x6600 | 1800x8000 | 1900x9000 | 2200x9000 | 2600x9500 | 2800x10200 |
| Drying capacity | 40-60t/h | 60-70t/h | 80-100t/h | 100-120t/h | 120-140t/h | 160-180t/h | 200-220t/h | 240-260t/h | 320-360t/h |
| Burner (oil) kg/h | 70-300 | 100-400 | 60-600 | 100-1000 | 100-1000 | 140-1400 | 180-1800 | 180-1800 | 250-2500 |
| Fuel consumption (oil) | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t |
| Mixing Tower |
| Screen | 4 layer | 4 layer | 4 layer | 4 layer | 4 layer | 4/5 layer | 5 layer | 5 layer | 6 layer |
| Aggregate weighing | 3x500kg | 3x1000kg | 3x1000kg | 3x1500kg | 3x1500kg | 3x2000kg | 3x3000kg | 3x3000kg | 3x5000kg |
| Bitumen weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Filler weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Mixer capacity | 500kg | 800kg | 1000kg | 1300kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Dust Collecting System |
| Bag house filtering | 200m2 | 300m2 | 430m2 | 480m2 | 550m2 | 650m2 | 700m2 | 1050m2 | 1350m2 |
| Exhaust Fan power | 18.5/22kw | 30/37kw | 45kw | 55kw | 2x45kw | 2x55kw | 2x75kw | 2 x 90kw | 2 x 110kw |
| Asphalt Temperature | 140-180 ℃ | 140-180℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Finished Asphalt Silo (Optional) | | | 30 ton | 30 ton | 30 ton | 60 ton | 100 ton | 100 ton | 100/200 ton |
| Total Power | -150kw | -180kw | -270kw | -300kw | -390kw | -500kw | -570kw | -640kw | -800kw |
